Damping rings
Damping rings

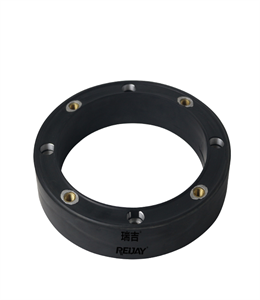

The damping ring is used for the installation for thebellhousing and oil tank lid.It works efficiently for thereduction of the noise and vibration.(noise could bereduced 3-5 dB(A)). It could absorb axial,radial andangular loads.
Key Features
- Suitable for vertical or horizontal installation on bellhousing, tank cover, or tank side wall
- Provides effective vibration and noise reduction
- Capable of withstanding axial, radial, and angular loads
- Made of oil-resistant materials for reliable performance
- Equipped with sealing ring to ensure tight sealing
- Designed to prevent side leakage
Technical Specifications
| Load Capacity | Axial, Radial, Angular loads |
| Material | Oil-resistant material |
| Sealing | Sealing ring included |
| Leakage Protection | Anti-side leakage |
| Max Oil Temperature | +80°C |
Applications
All hydraulic systemsIndustrial machineryMobile equipment
